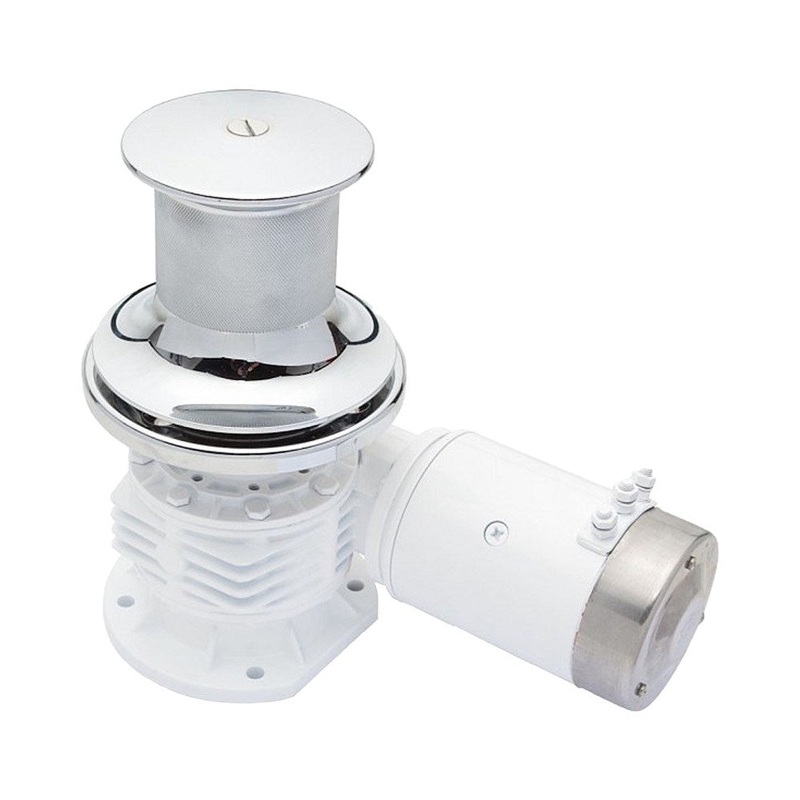

Muir VC650 Vertical Powered Capstans

• Deck hugging snag free design
• Unit can be mounted horizontally
• Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
• Capstan features heavy duty knurled finish for increased grip
• Heavy duty dual direction motor in 12 Vdc & 24 Vdc
• Self-aligning gearbox / adaptor
• Stainless steel shaft
• Stainless steel mounting bolts
• Shaft seal
• Installation / operation booklet

Vessel Length

8 – 11 m (26 – 36 ft)

Power Supply

12 / 24 Vdc

Motor

600 W

Max Load

295 kg (650 lb)

Work Load

74 kg (162 lb)

Amps Work Load

80 / 50

Max Line Speed

20 m / min (64 ft / min)

Rope Size

10 – 12 mm (3/8 – 1/2)

Net Weight

DC 9 kg (20 lb)
