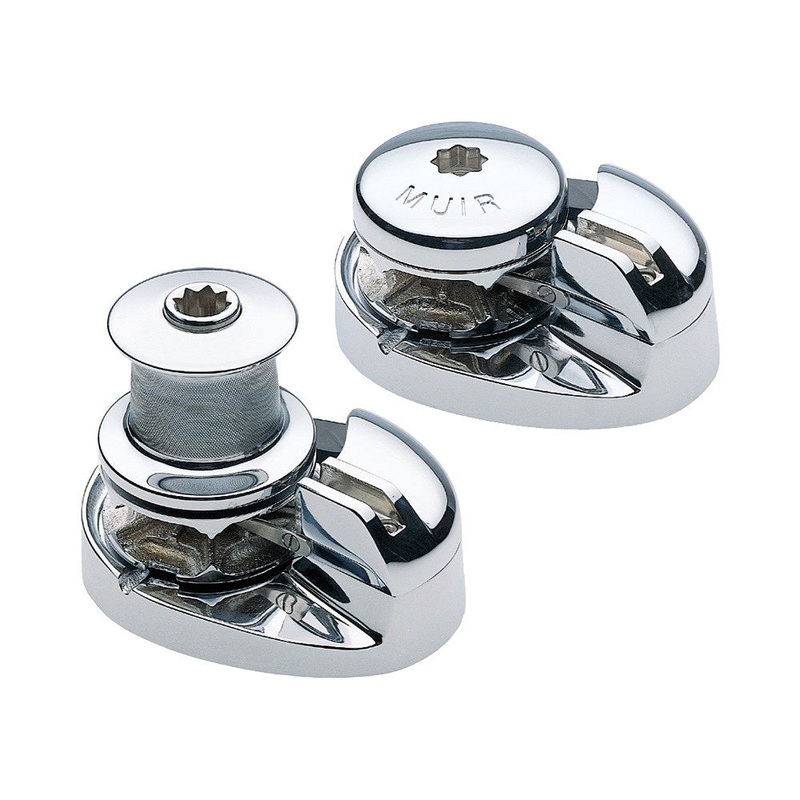

Muir VR2200 / VRC2200 Storm Stainless Steel Vertical Windlass

• Polished stainless steel components
• Rope chain combination gypsy for rope and chain combination or chain only
• Rope Chain Management System (RCMS)
• Quick release integrated swivel chain pipe cover
• Gypsy with low profile clutch top arrangement
• Heavy duty marine grade, dual direction motor in 12Vdc, 24 Vdc and Hydraulic
• Independent gypsy and capstan operation
• Capstan model features heavy duty knurled finish for increased grip
• Quick fit adaptor
• Stainless steel shaft
• Cone clutch / brake
• Stainless steel mounting bolts
• Shaft seal
• Self-lubricating bush
• Clutch release handle
• Installation/Operation booklet

Vessel Length

12 – 15 m (38 – 48 ft)

Power Supply

12 / 24 Vdc

Motor

1200 W

Hydraulic Pressure

10 MPa (1450 psi)

Hydraulic Flow

15 L/min (4 gal/min)

Max Load

1000 kg (2200 lb)

Work Load

250 kg (550 lb)

Amps Work Load

120 / 75

Max Line Speed

15 m / min (48 ft / min)

Chain Size

6 – 8 – 10 mm (1/4 – 9/16 – 5/8)

Rope Size

12 – 14 – 16 mm (1/2 – 9/16 – 5/8)

Net Weight

DC VR 23.5 kg (52 lb)

DC VRC 25 kg (55 lb)

HYD VR 22.5 kg (50 lb)

HYD VRC 24 kg (23 lb)
